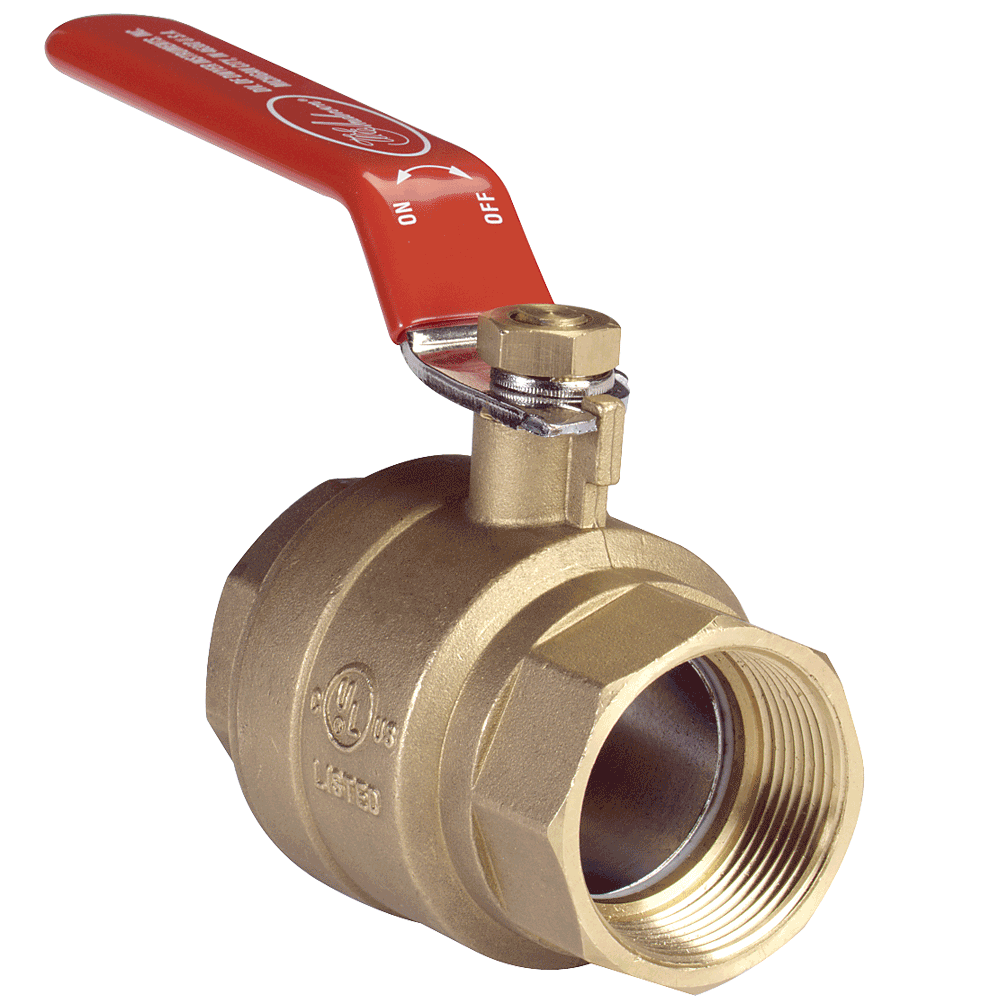

DBV黄铜球阀是一种经济型手动球阀，适用于商业或一般工业用途。 该系列DBV是手动关闭阀的理想选择，以及许多其他应用。 阀体、阀盖和球阀采用优质黄铜制造，经久耐用。 阀座和阀杆填料采用聚四氟乙烯(PTFE)材料，也可以长期使用。 防喷阀杆在超压的情况下提供安全保护。 全流道设计允许最大的Cv，同时仍然保持最小的压降。
Service:Gases and liquids compatible with wetted materials.
End Connections:1/4 to 3" female NPT.
Pressure Limits:-29" Hg to 600 psi (-736 mm Hg to 41 bar) WOG.
Temperature Limit:-40 to 365ºF (-40 to 185ºC).
Wetted Materials:
Body and Body Cap: Brass; Ball: Chrome plated brass;
Stem: Brass; Seat and Packing: PTFE.
Other Materials:
Body Gland and Stem Nut: Brass;
Handle Cover: Rubber; Handle: Steel.
| Model | Description |
|---|---|
| DBV-00 | Brass ball valve, 600 psi, full port, 1/4" |
| DBV-01 | Brass ball valve, 600 psi, full port, 3/8" |
| DBV-02 | Brass ball valve, 600 psi, full port, 1/2" |
| DBV-03 | Brass ball valve, 600 psi, full port, 3/4" |
| DBV-04 | Brass ball valve, 600 psi, full port, 1" |
| DBV-05 | Brass ball valve, 600 psi, full port, 1-1/4" |
| DBV-06 | Brass ball valve, 600 psi, full port, 1-1/2" |
| DBV-07 | Brass ball valve, 600 psi, full port, 2" |
| DBV-08 | Brass ball valve, 600 psi, full port, 2-1/2" |
| DBV-09 | Brass ball valve, 600 psi, full port, 3" |
