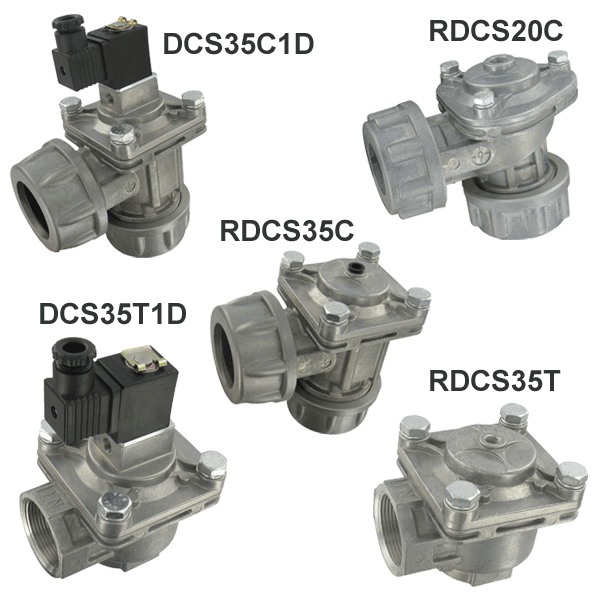

DCS/RDCS无弹簧集尘阀适用于DCT1000系列和DCT500系列管道集尘定时器。 无弹簧设计不仅提供了耐用性，而且为一个特殊的清洗脉冲提供了可靠性。 DCS和RDCS都有用于耦合或NPT连接的选项。 该耦合连接允许快速和简单的安装。 只有短管和吹管需要清洗和去毛刺之前，阀门安装到位。 “T”系列DCS具有内螺纹连接，“C”系列DCS具有耦合连接。 “T”型和“C”型在进口和出口之间都有一个90°的角度:最适合脉冲阀应用的配置。 这些阀门提供集成和远程线圈配置
Service:
Compatible gases, filtered and oil free.
Wetted Materials:
Body: Aluminum; Diaphragm disc: Thermoplastic polyurethane; Solenoid seals: NBR.
Other Materials:
Cover: Aluminum; Body bolts: Zinc plated SS; Solenoid: Nylon.
Pressure Limits:
Minimum of 4.4 psi (0.3 bar), maximum of 124.7 psi (8.6 bar).
Temperature Limits:
Ambient: -4 to 140°F (-20 to 60°C); Operating: -4 to 185°F (-20 to 85°C).
Power Requirements:
110 VAC, 220 VAC, or 24 VDC for DCS models.
Power Consumption:
12 W, inrush: 17 VA; Holding: 14.5 VA for DCS models.
Electrical Connection:
DIN connection for DCS models.
Enclosure Rating:
NEMA 4X (IP65) for DCS models.
Process Connection:
See model chart on catalog page.
Mounting Orientation:
Any position.
Agency Approval:
CE.
| Model | Description |
|---|---|
| DCS20C1D | 3/4" diaphragm valve, integrated coil, coupling connection, 110 VAC DIN electrical connection. |
| DCS20C3D | 3/4" diaphragm valve, integrated coil, coupling connection, 24 VDC DIN electrical connection. |
| DCS20T1D | 3/4" diaphragm valve, integrated coil, NPT connection, 110 VAC DIN electrical connection. |
| DCS20T3D | 3/4" diaphragm valve, integrated coil, NPT connection, 24 VDC DIN electrical connection. |
