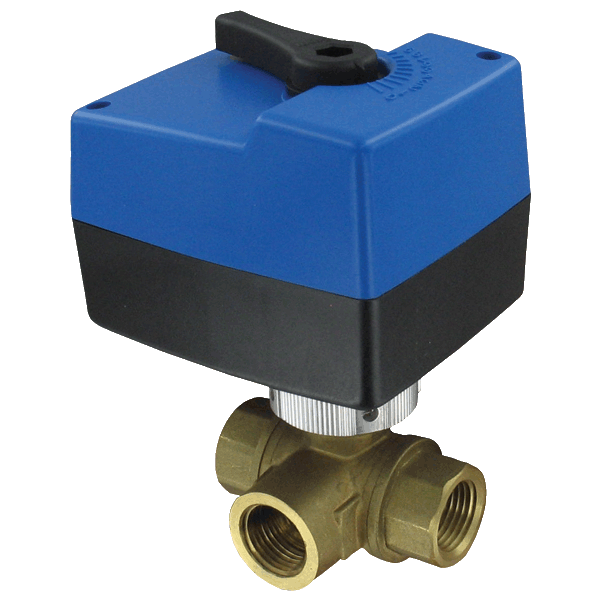

W.E. Anderson 可拆卸式球阀 3HBAV

免费咨询：029-86698996

分享到： 1

3HBAV是一个电动球阀理想的流量控制在热水和冷水暖通空调系统。这些阀门通常用于空调系统、加热系统、水处理和生产行业。 3HBAV是由双向交流电机驱动的开放式和/或封闭式电力驱动。电动阀门提供一个可拆卸的执行机构，带有位置开关和指示器。 3HBAV可配置调制或浮动执行机构。

Service:Compatible fluids.

Body:3-way, NC.

Line Size:1/2 to 2" NPT.

End Connections:Female NPT.

Pressure Limits:Max: 375 psi (25 bar); Close off: 87 psi (6 bar).

Temperature Limit:Ambient: -22 to 158°F (-30 to 70°C);
Process: 23 to 122°F (-5 to 50°C).

Wetted Materials:Brass, SS, NBR, PTFE.

Input:Floating: 3-wire; Modulating: 4 to 20 mA (24 VAC power only).

Power Requirements:120 VAC or 24 VAC, 50/60 Hz, single phase.

Power Consumption:Floating: 3 to 5 VA; Modulating: 4 VA.

Electrical Connection:18 AWG.

Cycle Time (per 90°):1/2 to 1": 45 s.; 1-1/4 to 2": 50 s.

Enclosure Rating:NEMA 1 (IP10).

Housing Material:Plastic, nylon, and polyoxymethylene.

Weight:See table on catalog page.

Model	Description
3HBAV0212	Three-Way detachable electric ball valve, Cv value 4.5, 1/2" npt, 120 vac, floating
3HBAV0214	Three-Way detachable electric ball valve, Cv value 4.5, 1/2" npt, 24 vac, floating
3HBAV0224	Three-Way detachable electric ball valve, Cv value 4.5, 1/2" npt, 24 vac, modulating
