价格低，全封闭结构

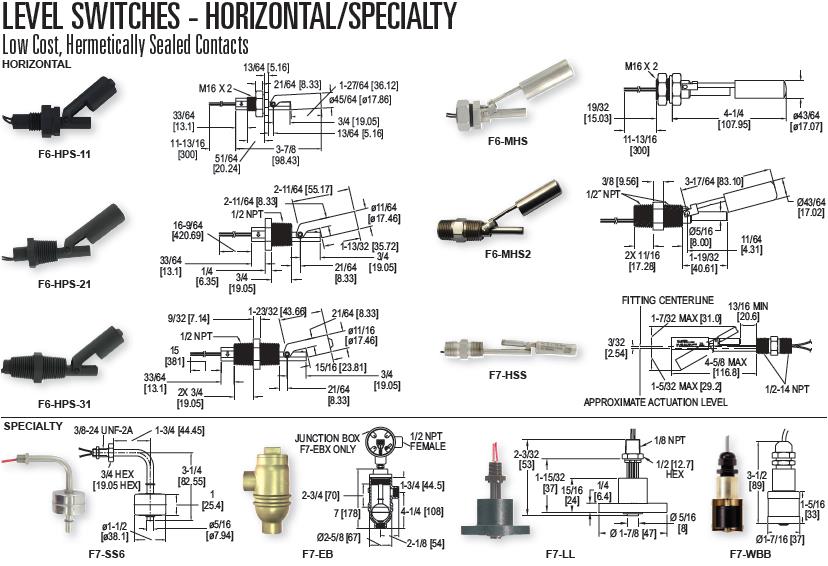

The SERIES F6 & F7 Horizontal Float Level Switches are designed to mount through the walls of tanks and other vessels. Internally mounted models F6-HPS-11, F6-MHS and F7-SS6 are secured to the wall of the tank or vessel from the inside while model F6-HPS-21 is mounted from the outside (externally). Models F7-HSS and F6-MHS2 can be installed internally or externally.

用途：用于化学工业、机油箱、冷却箱、油或水箱杀菌设备等
特点：耐高温、耐腐蚀
大温度：82/105°C可选
大压力；6.89/10bar可选
材料：聚丙烯/不锈钢可选
安装：1/8"NPT外螺纹，垂直安装
线长：22AWGX60cm/46cm
重量：20克/23克/34克/43克/58克

Model  Description

F6-HPS-11  Horizontal mount level switch, polypropylene float and stem, temperature limit 176°F (80°C), pressure limit 116 psig (8 bar), 0.6 min. specific gravity, electrical rating 20 VA: 0.08A @ 240 VAC, 22 AWG 11.8" (30 cm) wire leads, M16 x 2 int mounting, weight 1.23 oz (38 g).

F6-HPS-21  Horizontal mount level switch, polypropylene float and stem, temperature limit 176°F (80°C), pressure limit 116 psig (8 bar), 0.6 min. specific gravity, electrical rating 20 VA: 0.08A @ 240 VAC, 22 AWG 11.8" (30 cm) wire leads, 1/2" NPT ext mounting, weight 1.23 oz (38 g).

F6-HPS-31  Horizontal mount level switch, polypropylene float and stem, temperature limit 176°F (80°C), pressure limit 116 psig (8 bar), 0.6 min. specific gravity, electrical rating 20 VA: 0.08A @ 240 VAC, 22 AWG 11.8" (30 cm) wire leads, 1/2" NPT (int/ext) mounting, weight 1.41 oz (40 g).

F6-MHS  Horizontal mount level switch, 304SS float and stem, temperature limit 257°F (125°C), pressure limit 218 psig (15 bar), 0.85 min. specific gravity, electrical rating 20 VA: 0.08A @ 240 VAC, 22 AWG 11.8" (30 cm) wire leads, M16 x 2 int mounting, weight 3.35 oz (95 g).

F6-MHS2  Horizontal mount level switch, 304SS float and stem, temperature limit 257°F (125°C), pressure limit 363 psig (25 bar), 0.85 min. specific gravity, electrical rating 70 VA: 0.7A @ 250 VAC, 22 AWG 11.8" (30 cm) wire leads, 1/2" NPT, weight 4.8 oz (136 g).

F7-HSS  Horizontal mount level switch, 316SS float and stem, temperature limit 392°F (200°C), pressure limit 300 psig (20.7 bar), 0.60 min. specific gravity, electrical rating 30 VA: 0.14A @ 220 VAC, 22 AWG 24" (61 cm) wire leads, 1/2" NPT (int/ext) mounting, weight 3 oz (94 g).
