IF系列工业直读流量计是直接测量流量的流量计，用于水的流量高达116加仑(439 LPM)，用于空气服务的流量高达250 SCFM (7080 LPM)。
可提供校准选项，请与我们联系。
测量液体或气体；量程：从0-1.2SCFM到0-250SCFM（空气），从0-0.25GPM到0-116GPM（水）；精度：±3%FS；量程比：10:1
空气/水直读式刻度，304 不锈钢防护罩，±3% 精度

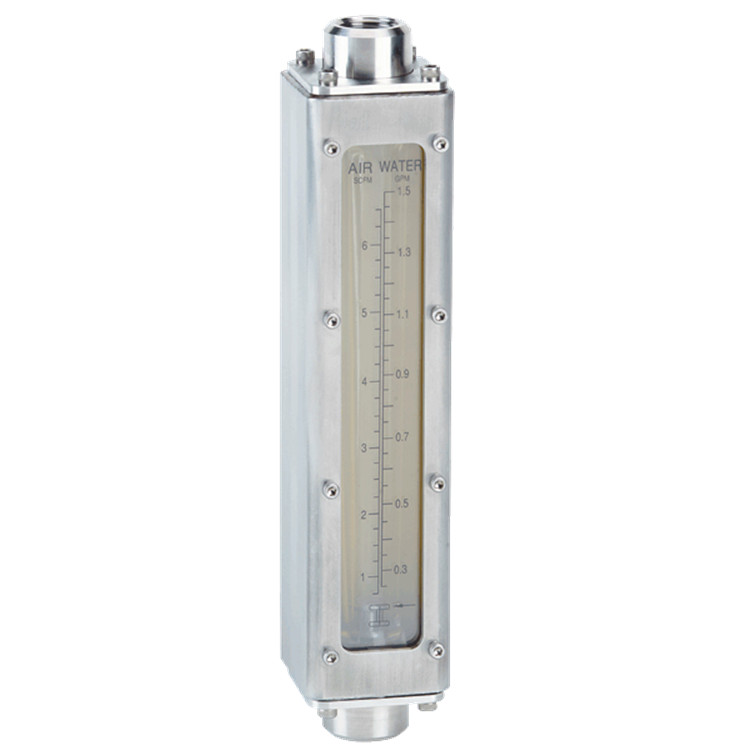

IF 系列工业直读式玻璃转子流量计完全封装在磨砂不锈钢外壳中，很适合工业应用。流量计可以直接测量116 GPM（439 Lpm）以下的水流量，250 SCFM（7080 Lpm）以下的空气流量。可拆卸的、透明的、3/16? 厚的聚碳酸酯前护罩可以在最大的工作温度和压力下提供保护。每一个流量计都采用NPT 内螺纹端头连接以便管线直接安装。
技术指标：
介质：液体或气体
材质：管身：硅酸硼玻璃；转子，导杆，转子阻，端头连接：316 不锈钢；O 形环：Viton
温度范围：200°F (93°C)
压力范围：200 Psi（13.8 Bar）；250 Psi（管子尺寸为5
和6 寸时）
精度：±3%（全量程）
重复性：±0.5%（全量程）
范围比：10:1
刻度：双重刻度（GPM 和Scfm）
工艺连接：见图表
安装：垂直安装
前护板：聚碳酸酯
侧板：304 不锈钢
| Model | Description |
|---|---|
| IF2700 | Industrial direct reading flowmeter, max. flow rate 0.25 GPM (0.95 LPM) water, 1.2 SCFM (35 LPM) air, 1/2" female NPT. |
| IF2701 | Industrial direct reading flowmeter, max. flow rate 0.36 GPM (1.3 LPM) water, 1.7 SCFM (50 LPM) air, pressure drop 2" w.c., 1/2" female NPT. |
| IF2702 | Industrial direct reading flowmeter, max. flow rate 0.76 GPM (3.0 LPM) water, 3.3 SCFM (90 LPM) air, pressure drop 5" w.c., 1/2" female NPT. |
| IF2703 | Industrial direct reading flowmeter, max. flow rate 1 GPM (3.7 LPM) water, 4.2 SCFM (120 LPM) air, pressure drop 6" w.c., 1/2" female NPT. |
| IF2704 | Industrial direct reading flowmeter, max. flow rate 1.5 GPM (5.6 LPM) water, 6.5 SCFM (180 LPM) air, 1/2" female NPT. |
| IF2705 | Industrial direct reading flowmeter, max. flow rate 2.2 GPM (8.2 LPM) water, 8.5 SCFM (250 LPM) air, pressure drop 10" w.c., 1/2" female NPT. |
| IF2706 | Industrial direct reading flowmeter, max. flow rate 3.8 GPM (14 LPM) water, 16 SCFM (475 LPM) air, pressure drop 10" w.c., 1" female NPT. |
| IF2707 | Industrial direct reading flowmeter, max. flow rate 5 GPM (18 LPM) water, 21.5 SCFM (650 LPM) air, pressure drop 14" w.c., 1" female NPT. |
| IF2708 | Industrial direct reading flowmeter, max. flow rate 6 GPM (20 LPM) water, 25.5 SCFM (725 LPM) air, pressure drop 5" w.c., 1" female NPT. |
| IF2709 | Industrial direct reading flowmeter, max. flow rate 7.4 GPM (27.5 LPM) water, 30 SCFM (900 LPM) air, pressure drop 6" w.c., 1" female NPT. |
| IF2710 | Industrial direct reading flowmeter, max. flow rate 9.6 GPM (35 LPM) water, 40 SCFM (1200 LPM) air, pressure drop 10" w.c., 1" female NPT. |
| IF2711 | Industrial direct reading flowmeter, max. flow rate 11 GPM (40 LPM) water, 47.5 SCFM (1400 LPM) air, pressure drop 13" w.c., 1" female NPT. |
| IF2712 | Industrial direct reading flowmeter, max. flow rate 14 GPM (50 LPM) water, 62 SCFM (1800 LPM) air, pressure drop 24" w.c., 1" female NPT. |
| IF2713 | Industrial direct reading flowmeter, max. flow rate 20 GPM (75 LPM) water, 90 SCFM (2600 LPM) air, pressure drop 39" w.c., 1" female NPT. |
