紧凑型，NEMA 4X外壳

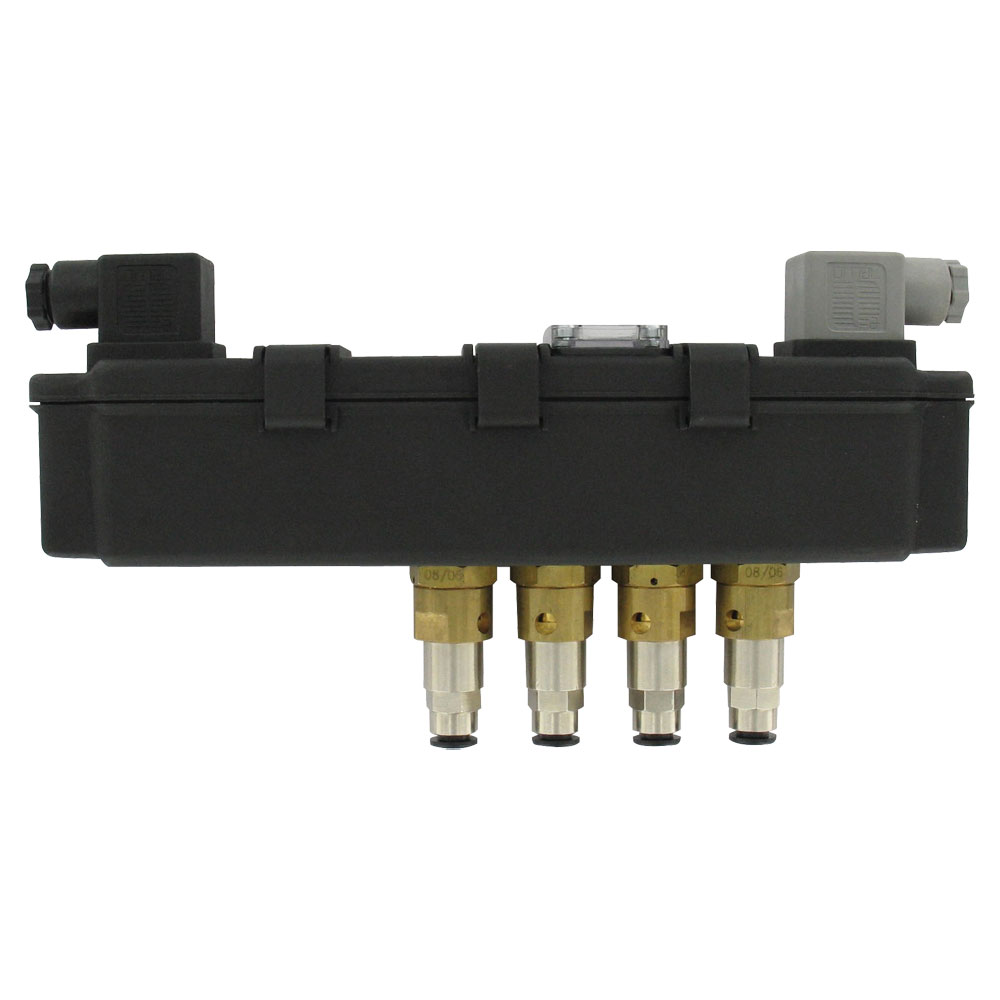

SVT系列带定时器的电磁阀外壳是一种紧凑、可靠和经济的组件，专为中小型过滤系统设计。它将计时器板和电磁阀外壳组合成一个封装，无需单独的外壳和接线。SVT可配备2、4或6个阀。对于较大的系统，扩展模块可以菊花链连接到SVT，最多输出60个。通用电源可在50或60 Hz的频率下接受90-240 VAC，以满足国内和国际要求。可通过简单的dip开关选择按需清洁或停机清洁功能。使用两个电位计选择打开和关闭时间设置。
对于按需系统，DwyerA3000 Photohelic压力表或1950系列压力开关可与SVT一起使用。
注：SVTE模块由主外壳供电，可与90至240 VAC或24 VDC/VAC型号SVT一起使用。
产品应用
粉尘收集气动输送工业真空
特征
使用一个电子设备和阀门外壳将安装时间和成本降至最低
易于接线安装，可接受任何全局电压输入
具有现场可选清洁功能和开/关设置的快速定制配置
Service:Compatible gasses, filtered and oil free.
Wetted Materials:Pilot Body: Brass; Spring: 302 SS; Diaphragm: NBR.
Temperature Limits:14 to 140°F (-10 to 60°C).
Pressure Limit:145 psi (10 bar).
Power Requirements:90 to 240 VAC, 50 or 60 Hz or 24 VAC 50 to 60 Hz, 24 VDC, ±10%.
Power Consumption:25 VA/25 W.
Fuse:90 to 240 VAC 0.5 A delayed, 24VAC/DC 1.5 A delayed.
Electrical Connection:2 DIN A 43652 connectors.
Enclosure Rating:NEMA 4X (IP65).
Enclosure Material:
Polyamide with carbon fiber, polycarbonate, TPE rubber.
Process Connection:1/4" OD Push to Connect.
Mounting Orientation:Any position.
On-Time:150 msec to 700 msec.
Off-Time:4 seconds to 210 seconds.
Agency Approvals:CE.
| Model | Description |
|---|---|
| SVT-2 | Solenoid valve enclosure with timer, 90-240 VAC, 2 valves. |
| SVT-2-DC | Solenoid valve enclosure with timer, 24 VDC, 2 valves. |
| SVT-3 | Solenoid valve enclosure with timer, 90-240 VAC, 3 valves. |
| SVT-3-DC | Solenoid valve enclosure with timer, 24 VDC, 3 valves. |
| SVT-4 | Solenoid valve enclosure with timer, 90-240 VAC, 4 valves. |
| SVT-4-DC | Solenoid valve enclosure with timer, 24 VDC, 4 valves. |
| SVT-5 | Solenoid valve enclosure with timer, 90-240 VAC, 5 valves. |
| SVT-5-DC | Solenoid valve enclosure with timer, 24 VDC, 5 valves. |
| SVT-6 | Solenoid valve enclosure with timer, 90-240 VAC, 6 valves. |
| SVT-6-DC | Solenoid valve enclosure with timer, 24 VDC, 6 valves. |
