为昂贵的设备和系统提供廉价的保护

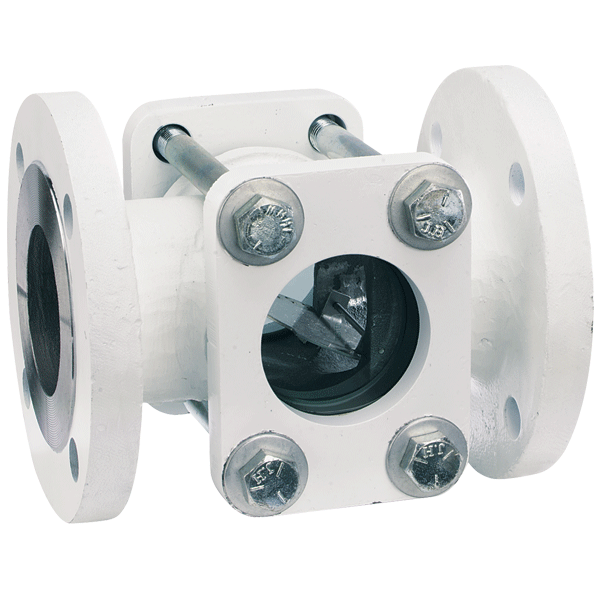

300F可视流量指示器采用优质材料制造，经过安全测试，以经济的价格确保长期可靠的使用。300F系列提供ANSI法兰工艺连接件、双观察窗和碳钢或316不锈钢主体。350F型有一个没有移动指示器的双窗口，360F型有一个带挡板的双窗口。所有类型都有一个可拆卸的窗户，便于维修和更换易损件。
Service:Compatible gases and liquids.
Wetted Materials: Window: tempered glass; Body: carbon steel or 316 SS; Gasket: Buna-N, fluoroelastomer or PTFE; Indicator: 316 SS flapper (360).
Temperature Limit:200°F (93°C).
Pressure Limit:150 psig (10.34 bar).
Connections:Flanged.
| EXAMPLE | SFI | 350FCS | 1-1/2 | G1 | Series SFI-350FCS-1-1/2-G1 Sight Flow Indicator, carbon steel body, no moving indicator, 1-1/2" body, with PTFE gasket |
| SERIES | SFI | Sight Flow Indicator | |||
| BODY STYLE |
350FCS 350FSS 360FCS 360FSS |
Carbon Steel Body, no Moving Indicator 316SS Body, no Moving Indicator Carbon Steel Body, 316SS Flapper 316SS Body, 316SS Flapper |
|||
| BODY SIZE |
1-1/2 2 3 4 6 |
1-1/2" 2" 3" 4" 6" |
|||
| OPTIONS |
G1 G2 ST |
PTFE Gasket Fluoroelastomer Gasket Stainless Steel Tag |
