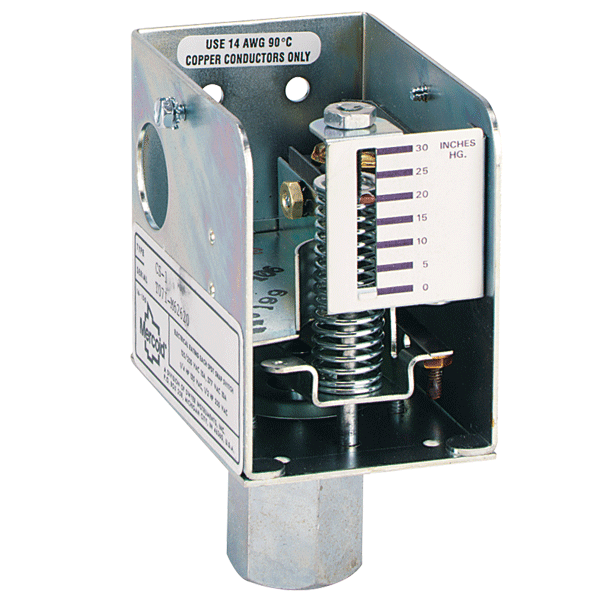

Mercoid压力开关CS & CD

Mercoid 压力开关 CS & CD

免费咨询：029-86698996

分享到： 1

CS和CD隔膜压力开关结合了先进的设计和精密的结构在一个小的尺寸。本机适用于仪表盘、小型压缩机和一般工业应用场合。设置点清晰可见，易于连接SPDT快速开关，减少安装时间。可在任何位置工作，并具有防振性能

Wetted Materials:Nylon reinforced Buna-N and steel.

Temperature Limits:-30 to 150°F (-35 to 66°C).

Pressure Limit:

30 psig (2.1 bar) for ranges 1, 3, and 10. 50 psig (3.5 bar) for range 30. 175 psig (12.1 bar) for range 150.

Enclosure Rating:General purpose.Switch Type:SPDT snap switch.

Electrical Rating:15 A @ 120 VAC, 8 A @ 240 VAC.

Electrical Connections:Screw terminal.

Conduit Connection:1/2" hole for conduit hub.

Process Connection:1/4" female NPT.

Mounting Orientation:Any position.

Set Point Adjustment:Internal screw.

Weight:.5 lb (0.23 kg).

Deadband:See Ordering page.

Model	Description
CS-1	Low cost diaphragm pressure switch, adj. range 1-30" Hg Vac (25.4-762 mm Hg), deadband 1.5" Hg (38 mm Hg).
CS-10	Low cost diaphragm pressure switch, adj. range 1-10 psig (.07-.69 bar), deadband 0.4 psig (0.03 bar).
CS-150	Low cost diaphragm pressure switch, adj. range 10-150 psig (.69-10.3 bar), deadband 5 psig (0.35 bar).
CS-3	Low cost diaphragm pressure switch, adj. range 1-100" w.c. (.25-24.9 kPa), deadband 7" w.c. (1.74 kPa).
CS-30	Low cost diaphragm pressure switch, adj. range 1-30 psig (.07-2.1 bar), deadband 1.0 psig (0.07 bar).
