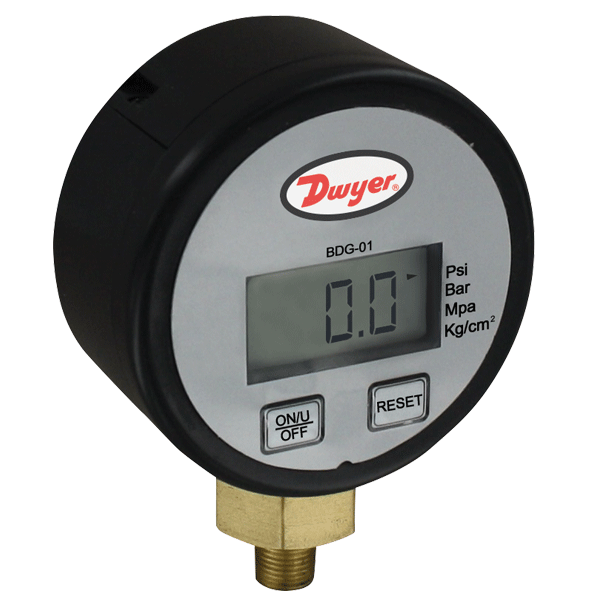

BDG-01黄铜数字压力计 测量气体压力的±0.5%的全尺寸精度。该系列BDG采用黄铜浸润材料，适用于各种气体的特殊应用。它的设计便于安装。用户可选择的测量单位，用于各种压力等级
Service:
Compatible gases.Wetted Materials:
Brass and silicone sensor.Housing Materials:
ABS plastic.
Accuracy:±0.5% FS.
Long Term Stability:±0.05% FS per year.
Pressure Limits:2X pressure range; Burst pressure: 3X pressure range.
Enclosure Rating:IP10.
Temperature Limits:14 to 140°F (- 10 to 60°C).
Thermal Effect:±0.04% FS per °C.
Size:2.5" OD.
Process Connection:1/4" male NPT.
Display:4-digit LCD (1-1/4 x 5/8").
Power Requirements:3 V CR123A lithium metal battery, installed functional, user replaceable.
Battery Life:
2 to 3 years typ.Weight:0.29 lb (0.13 kg).
| Model | Description |
|---|---|
| BDG-01 | Brass digital pressure gage, range 0 to 150 psig, 10.342 Bar, 1.034 mPa and 10.545 kg/cm2. |
