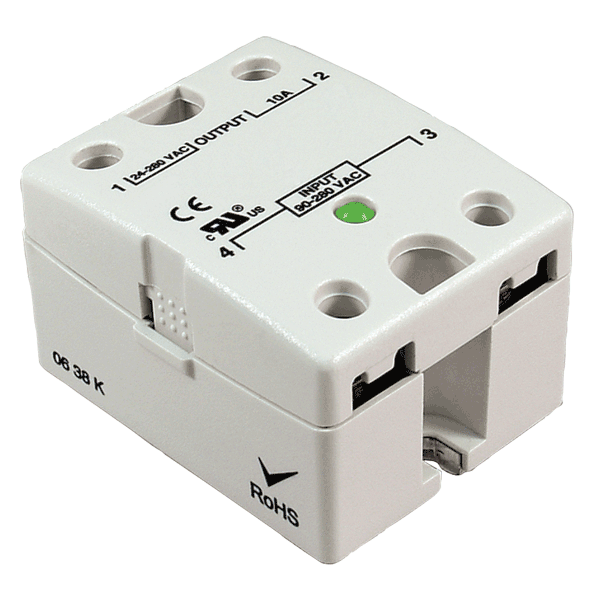

固态继电器具有端子盖和LED状态指示器。 光学耦合电路将输入端子与输出端子隔离，使继电器具有100%纯固态性能。
Operating and Load Voltage Range:24 to 280 VAC.
Electrical Connection:Spade lug.
Switching Operation:SPST normally open.
Switching Type:Zero cross.
Temperature Limits:-40 to 176°F (-40 to 80°C).
Voltage Loss:1.6 VAC max.
Output Leakage Current:10 mA max.
Housing:Polyamide 6.
Weight:3.5 oz.
Agency Approvals:cUR, UR, CE, RoHS.
Model Description
6210AXXSZS-AC90 SSR, 10A, 90 to 280 VAC input.
6210AXXSZS-DC3 SSR, 10A, 3 to 32 VDC input.
6225AXXSZS-AC90 SSR, 25A, 90 to 280 VAC input.
6225AXXSZS-DC3 SSR, 25A, 3 to 32 VDC input.
6240AXXSZS-AC90 SSR, 40A, 90 to 280 VAC input.
6240AXXSZS-DC3 SSR, 40A, 3 to 32 VDC input.
