DWYER 皮托管 160G系列

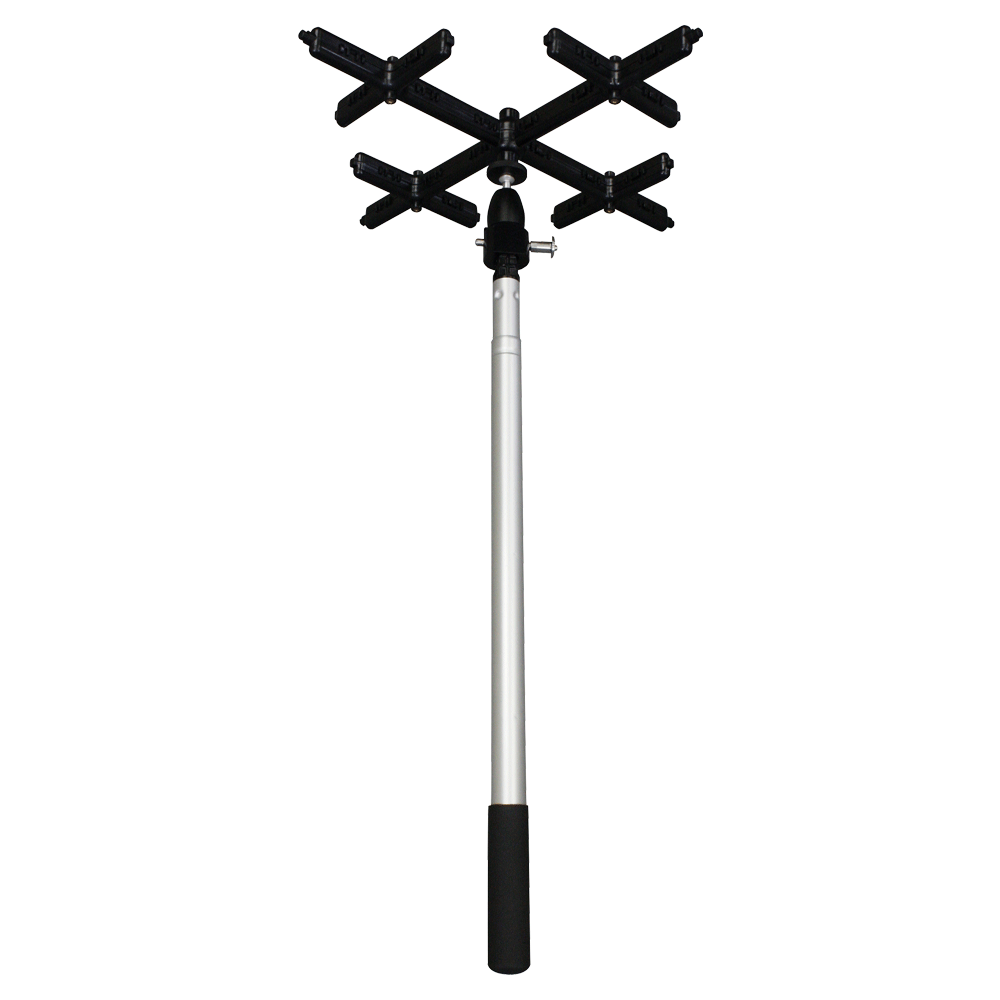

The Model 160G Averaging Air Flow Grid utilizes 16 sensing points to provide precision sensing across its 16.5" (41.9 cm) length and width. The ball pivot joint and tightening nut allows the user to position the sensing grid at any angle in any direction for ease of use in hard to reach locations. The included color coded tubing connects to the integral barbed fittings, providing a differential pressure signal to a gage or manometer where the readings can be converted into a velocity or flow reading.
Service:
Air or compatible gases.
Wetted Materials:
Grid: Black polycarbonate; Ball pivot joint: AL, plastic; Handle: Aluminum; Standoffs: Aluminum with rubber bumpers, two sets: 1.25" (31.7 mm) and 2" (50.8 mm), 1/8" ID / 1/4" OD; Tubing: Two 10' (3 m) lengths of silicone rubber.
Accuracy:±2% FS.
Temperature Limits:-40 to 257°F (-40° to 125°C).
K Factor:0.84.
Range:1000 to 5000 FPM (5 to 25 m/s).
Process Connection:1/8 to 1/4" ID tubing.
Weight:1.75 lb (0.79 kg).
Agency Approvals:RoHS.
