DWYER 皮托管 160F

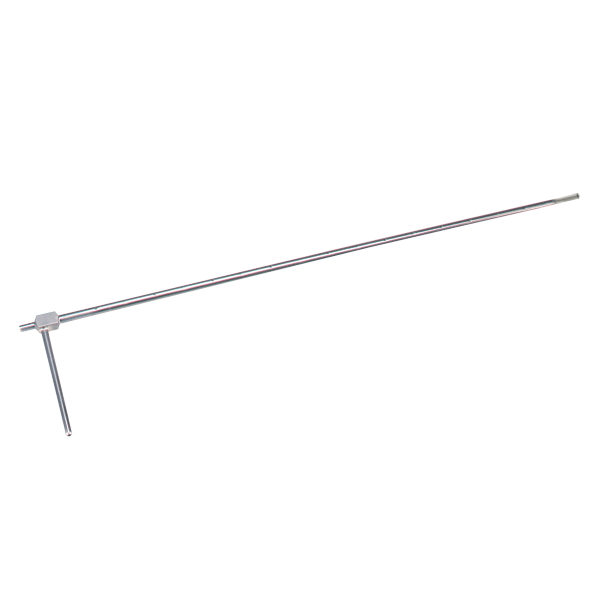

The Series 160F Straight Stainless Steel Pitot Tube is constructed from corrosion resistant stainless steel with permanently etched insertion depth graduations for a lifetime of service. The static pressure port is parallel to the sensing tube to allow quick, easy alignment of the tube with air flow. The straight design allows for easy insertion into ducts through grills and pressure taps, as well as aids in positioning in hard to reach locations where a hook style Pitot tube may not allow access.
Material:304 SS.
Accuracy:±2% FS, 0 to 9000 FPM (45 M/s).
K-Factor:0.81.
Max. Temperature:1500°F (815°C).
Process Connections:1/4" OD.
Weight:4.3 oz (122 g).
Agency Approvals:Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
