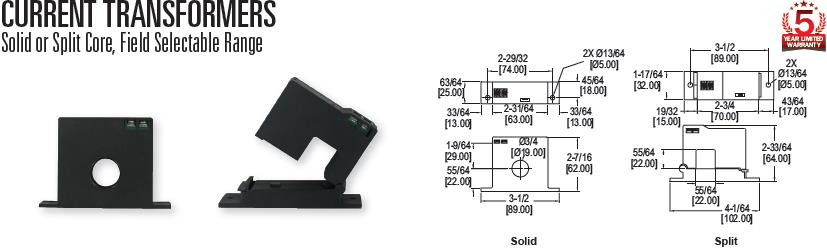

The Series CCT40/50 Current Transformers are a low cost alternative for measuring power and monitoring the operation of fans, pumps, or other equipment. For use on existing installations, split core models can be installed without disconnecting cables. Each model offers three jumper selectable ranges and a choice of three different outputs.

Amperage Range:

Field selectable; up to 200 A (depending on model).

Output:

0 to 5 V, 0 to 10 V, or 4 to 20 mA (depending on model).

Power Requirements:

Self powered or 15 to 42 VDC loop powered (depending on model).

Accuracy:

1%.

Temperature Limits:

-22 to 158ºF (-30 to 70ºC).

Humidity Limits:

0 to 95% (non-condensing).

Response Time:

250 ms to 90%.

Isolation Voltage:

2000 V.

Frequency:

10 to 400 Hz.

Enclosure Rating:

UL, 94 V-O flammability rated, ABS plastic housing.

Approvals:

CE, cUL, UL.

Model Description

CCT40-100 Current transformer, 10/20/50 A input, 4-20 mA output, split core.

CCT40-102 Current transformer, 10/20/50 A input, 0-5 V output, split core.

CCT40-200 Current transformer, 10/20/50 A input, 4-20 mA output, solid core.

CCT40-202 Current transformer, 10/20/50 A input, 0-5 V output, solid core.

CCT40-203 Current transformer, 10/20/50 A input, 0-10 V output, solid core.

CCT50-100 Current transformer, 100/150/200 A input, 4-20 mA output, split core.

CCT50-102 Current transformer, 100/150/200 A input, 0-5 V output, split core.

CCT50-200 Current transformer, 100/150/200 A input, 4-20 mA output, solid core.

CCT50-202 Current transformer, 100/150/200 A input, 0-5 V output, solid core.

CCT50-203 Current transformer, 100/150/200 A input, 0-10 V output, solid core.
