微型投入式液位传感器

直径只有0.63’’。非常适合井和井眼使用。精度为0.10%。6V电源可选

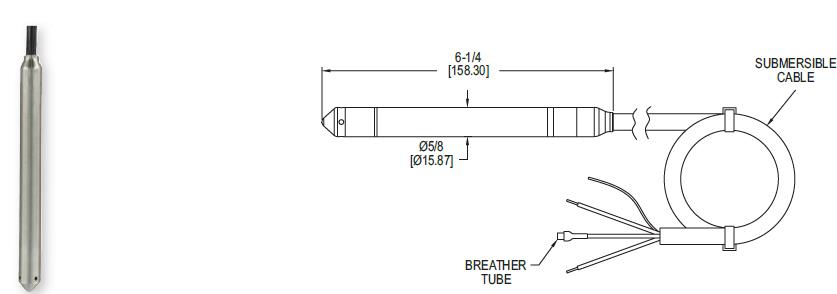

MBLT只有0.63’’的直径使它在井和井眼进行液位测量时能得到完美的应用，且安装方便。传感器外壳和底部的盖帽是316不锈钢。传感器顶端也是316不锈钢，其锥形的构造能使拉拽是不被损坏和卡住。 ±0.10% o或 ±0.25%的精度超过了大多数的超声波液位传感器。具有高标准的抗雷击和过载保护性能。聚醚型聚氨酯或ETFE型电缆材料都有气压补偿。通气孔都具有无需维护的过滤器防止微型颗粒和水滴进入传感器

产品规格

介质：兼容的液体

元件材质：316不锈钢机身和盖帽  电缆：聚醚型聚氨酯或ETFE  密封件：氟橡胶  标签：聚烯烃

精度： ±0.25% or ±0.10%

温度范围： -4 to 176°F (-20 to 80°C)

补偿温度限制：0.25%: (0 to 70°C); 0.10%: (0 to 60°C).

热效应：0.25%: ±0.45% FS TEB; 0.10%: ±0.30% FS TEB.

压力范围：2x FS.

电源要求：电流型：10 to 33 VDC  电压型：8 to 33 VDC

输出信号： 4 to 20 mA DC 二线制 or 0 to 5V

响应时间：＜50ms

大回路电阻：1000Ω @ 30 VDC (current output).

电气连接： 电缆接头

安装方式：悬浮于测量点下面

电气保护：Surge/lightning protected per EN61000-4-5, Class 5

重    量： Body: 0.235 lb (0.107 kg); Cable: 0.037 lb (0.009 kg) per foot.

专业认证：CE

电压输出阻抗：10Ω + 4.4Ω / 100' cable (voltage output).

Model Description

MBLT-2SB-IVPF-100-120Mini submersible level transmitter, .10% accuracy, surge protection, 100' range, 4-20mA output, 120' of vented polyurethane cable.

MBLT-2SB-IVPF-150-170Mini submersible level transmitter, .10% accuracy, surge protection, 150' range, 4-20mA output, 170' of vented polyurethane cable.

MBLT-2SB-IVPF-200-220Mini submersible level transmitter, .10% accuracy, surge protection, 200' range, 4-20mA output, 220' of vented polyurethane cable.

MBLT-2SB-IVPF-20-40Mini submersible level transmitter, .10% accuracy, surge protection, 20' range, 4-20mA output, 40' of vented polyurethane cable.

MBLT-2SB-IVPF-30-50Mini submersible level transmitter, .10% accuracy, surge protection, 30' range, 4-20mA output, 50' of vented polyurethane cable.

MBLT-2SB-IVPF-350-370Mini submersible level transmitter, .10% accuracy, surge protection, 350' range, 4-20mA output, 370' of vented polyurethane cable.

MBLT-2SB-IVPF-50-70Mini submersible level transmitter, .10% accuracy, surge protection, 50' range, 4-20mA output, 70' of vented polyurethane cable.

MBLT-2SB-IVPF-690-710Mini submersible level transmitter, .10% accuracy, surge protection, 690' range, 4-20mA output, 710' of vented polyurethane cable.

MBLT-2SB-IVPM-100-106Mini submersible level transmitter, .10% accuracy, surge protection, 100 meter range, 4-20mA output, 106 meter of vented polyurethane cable.

MBLT-2SB-IVPM-10-15.2Mini submersible level transmitter, .10% accuracy, surge protection, 10 meter range, 4-20mA output, 15.2 meter of vented polyurethane cable.

MBLT-2SB-IVPM-200-206Mini submersible level transmitter, .10% accuracy, surge protection, 200 meter range, 4-20mA output, 206 meter of vented polyurethane cable.

MBLT-2SB-IVPM-20-26Mini submersible level transmitter, .10% accuracy, surge protection, 20 meter range, 4-20mA output, 26 meter of vented polyurethane cable.

MBLT-2SB-IVPM-30-36Mini submersible level transmitter, .10% accuracy, surge protection, 30 meter range, 4-20mA output, 36 meter of vented polyurethane cable.

MBLT-2SB-IVPM-40-46Mini submersible level transmitter, .10% accuracy, surge protection, 40 meter range, 4-20mA output, 46 meter of vented polyurethane cable.

MBLT-2SB-IVPM-60-66Mini submersible level transmitter, .10% accuracy, surge protection, 60 meter range, 4-20mA output, 66 meter of vented polyurethane cable.
