Economical, Brass Body, Dry Dial

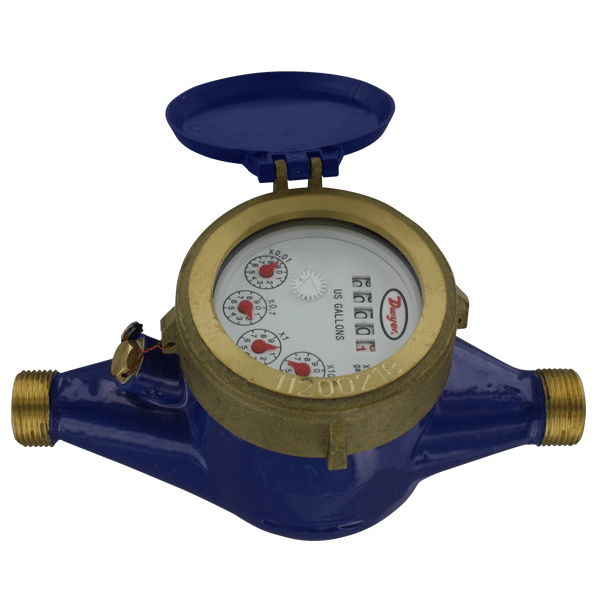

The SERIES WM2 Multi-Jet Water Meters is a series of mechanical, water totalizing meters that display the total water usage in gallons or m3. They are available in a range of body sizes and include NPT or BSPT couplings.
Service:
Water.
Wetted Materials:
Body: Brass, polyethylene;
Couplings: Brass;
Measuring Chamber: Polyethylene, ABS plastic, ferrite, acetal.
Flow Range:
See model chart on catalog page.
Accuracy:
Transitional Flow: ±5%; Nominal Flow: ±2%.
Temperature Limit:
104°F (40°C).
Pressure Limit:
232 psi (16 bar).
Totalizing Display Maximum:
See model chart on catalog page.
Mounting Orientation:
Horizontal with the register face pointing up.
Weight:
See catalog page.

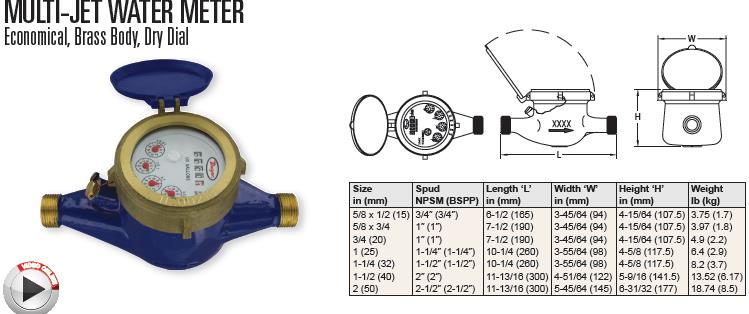

Model Description
WM2-A-C-01 5/8" x 1/2" brass multi-jet water meter (GPM).
WM2-A-C-02 5/8" x 3/4" brass multi-jet water meter (GPM).
WM2-A-C-03 3/4" brass multi-jet water meter (GPM).
WM2-A-C-04 1" brass multi-jet water meter (GPM).
WM2-A-C-06 1-1/2" brass multi-jet water meter (GPM).
WM2-A-C-07 2" brass multi-jet water meter (GPM).
