Local Flow Indication, Unrestricted Mounting, 4 to 20 mA, 0 to 5 V, and 1 to 5 V Output

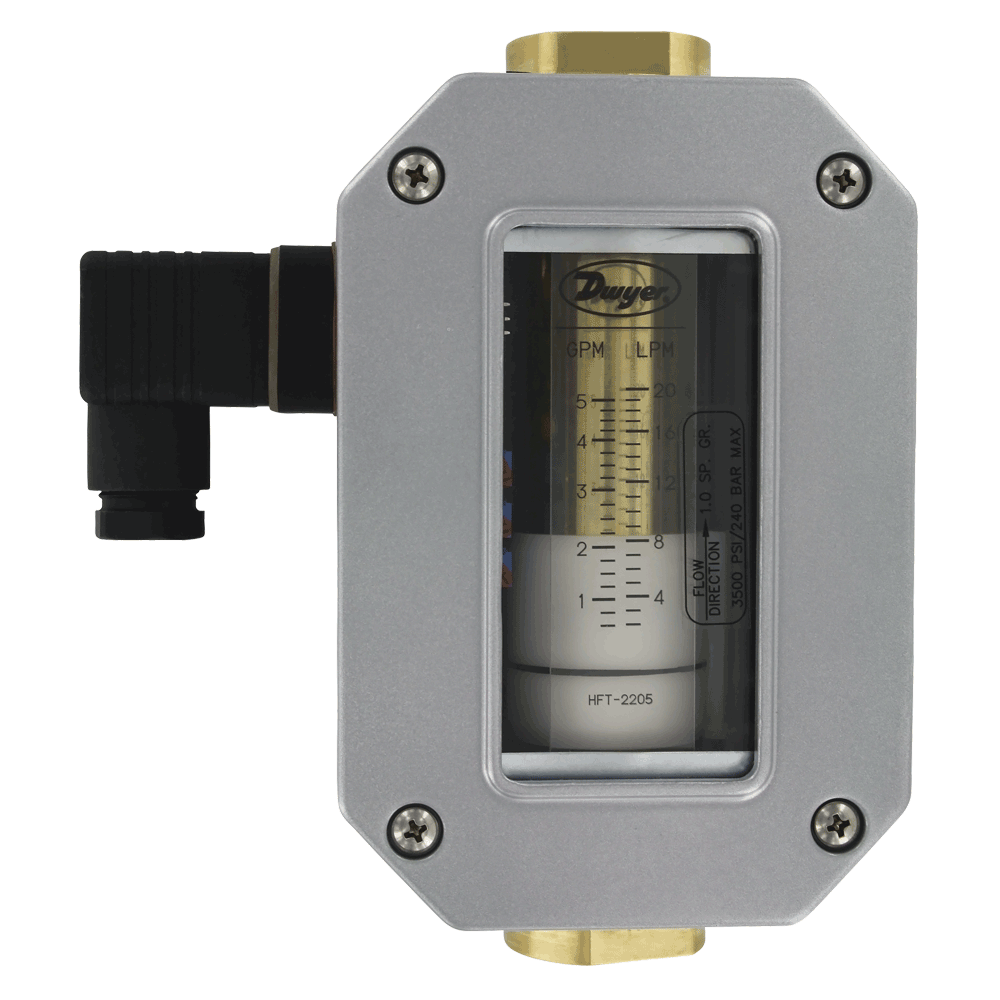

The SERIES HFT In-Line Transmitters provide continuous monitoring of flow rate levels via a direct reading in-line flowmeter with electronics to provide proportional 4 to 20 mA, 0 to 5 and 1 to 5 VDC analog outputs.
Service:
Compatible gases or liquids.
Wetted Materials:
Body: Aluminum, brass or 304 SS; Seals: Buna-N or Fluoroelastomer; Magnet: PTFE coated Alnico; Other internal parts: 304 SS.
Viscosity:
500 SSU.
Temperature Limits:
170°F (76°C).
Pressure Limits:
Aluminum body: 600 psig (41 bar); Brass body: 3500 psig (240 bar); 304 SS body: 6000 psig (413 bar).
Power Requirements:
12 to 35 VDC.
Enclosure Rating:
NEMA 4X (IP66).
Accuracy:
±2% FS.
Repeatability:
±1% of FS.
Response Time:
<100 ms.
Output Signal:
4 to 20 mA; 0 to 5 V; 1 to 5 V.
Shipping Weight:
1/4 to 1/2" female NPT models: 3 lb (1.4 kg); 3/4 to 1" female NPT models: 4.5 lb (2.0 kg); 1-1/2" female NPT models: 12 lb (5.4 kg).
