应用：冷却系统流量指示、润滑系统、供燃料系统等

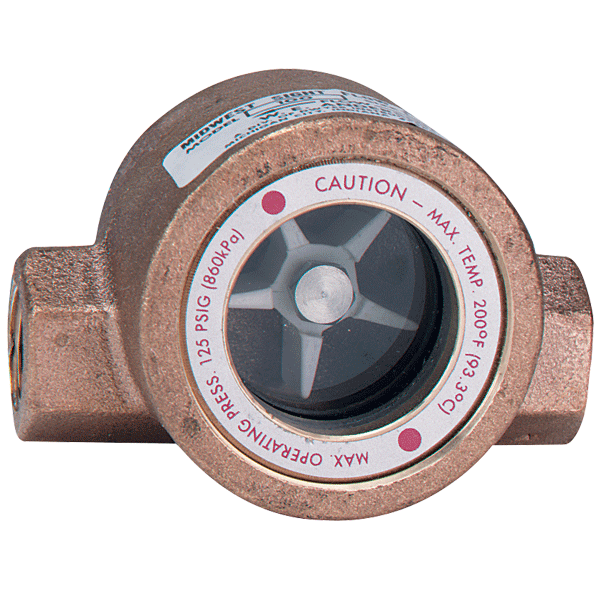

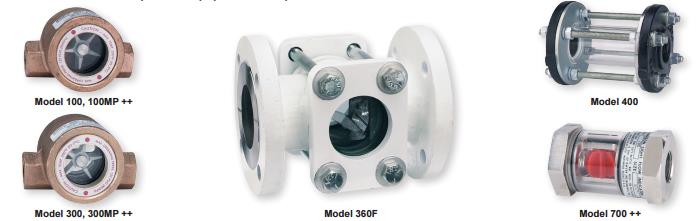

100——单窗带叶轮
300——双窗带叶轮
350——双窗无叶轮指示
360——双窗带叶拍
400——管状无叶片指示
700——管状带叶片带内部擦拭器
300F系列特性
介质: 兼容液体或气体.
接液材质: 窗口: 回火玻璃; 本体: 碳钢或316 SS; 密封片: Buna-N, 氟橡胶or PTFE; 指示轮: ABS or 316 SS叶轮(360)
温度限制: 200°F (93°C).
压力限制: 150 psig (10.34 bar)
连接: 法兰
| 举例 | SFI | 360FSS | 1-1/2 | G1 | SFI-360FSS-1-1/2-G1 Sight Flow Indicator; double window, tempered glass, Teflon® gasket, 316SS body,304SS flapper, 1-1/2 inch raised face flange connections |
| 型号 | SFI | Sight flow indicator, double window, tempered glass, Buna-N gaskets standard, raised face flange connections | |||
| 类型 | 350FCS 350FSS 360FCS 360FSS |
Carbon steel body, no moving indicator 316SS body, no moving 316SS indicator Carbon steel body, 316SS flapper 316SS body, 316SS flapper |
|||
| 连接尺寸 | 1-1/2 2 3 4 6 |
1-1/2 inch raised face flange connection size 2 inch raised face flange connection size 3 inch raised face flange connection size 4 inch raised face flange connection size 6 inch raised face flange connection size |
|||
| 可选项 | G1 G2 |
Teflon® gasket Viton® gasket |
400系列特性
介质: 兼容液体或气体.
接液材质: 筒子: 回火硼硅酸盐; 本体: 铸铁或316 SS; 密封片:PTFE
温度限制: 200°F (93°C).
压力限制: 50 psig (3.45 bar)
连接: 螺纹或法兰
| 举例 | SFI | 400 | 1-1/2 | SFI-400SS-1-1/2 Sight Flow Indicator; tube type, borosilicate tube, Teflon® gaskets, 316SS body, 1-1/2 inch female NPT connections |
| 型号 | SFI | Sight flow indicator, tube type, borosilicate tube, Teflon® gaskets | ||
| 类型 | 400CI 400SS 400F |
Female NPT connections, cast iron body (only for 1 through 2 inch sizes) Female NPT connections, 316SS body Raised face flange connection, 316SS body (only for 1 inch and up sizes) |
||
| 尺寸 | 1/2 3/4 1 1-1/4 1-1/2 2 3 4 |
1/2 inch connection size 3/4 inch connection size 1 inch connection size 1-1/4 inch connection size 1-1/2 inch connection size 2 inch connection size 3 inch connection size 4 inch connection size |
700系列特性
介质: 兼容液体或气体.
接液材质: 筒子: 回火硼硅酸盐; 本体: 黄铜或316 SS; 密封片:氟橡胶; 指示轮: 乙缩醛
温度限制: 212°F (100°C).
压力限制: 230 psig (15.86 bar)
连接: 螺纹
| 举例 | SFI | 700SS | 1-1/2 | SFI-700SS-1-1/2 Sight Flow Indicator; tube type with 8 blade Delrin® impeller and integral wipers to clean tube interior, tempered borosilicate tube, Viton® gaskets, 316SS body, 1-1/2 inch female NPT connections | |
| 型号 | SFI | Sight flow indicator, tube type with 8 blade Delrin impeller and integral wipers to clean tube interior, tempered borosilicate tube, Viton® gaskets | |||
| 类型 | 700 700SS |
Brass body 316SS body |
|||
| 连接尺寸 | 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 |
1/4 inch female NPT connection size 3/8 inch female NPT connection size 1/2 inch female NPT connection size 3/4 inch female NPT connection size 1 inch female NPT connection size 1-1/4 inch female NPT connection size 1-1/2 inch female NPT connection size |
|||
| 可选项 | BSPT BSPP |
BSPT threads BSPP threads |
