The innovative SERIES VFCR Visi-Float® Acrylic Flowmeter with Roto-Gear Technology is a direct reading variable area flowmeter with scales for liquid or gas applications. Roto-gear valve technology permits full open to close adjustment while maintaining fine flow control of the process media in one valve design. Installation, operation, and maintenance are simple ensuring a long, accurate, and trouble-free operation life.
REMOVABLE ROTO-GEAR VALVE CARTRIDGE ASSEMBLY
Easily remove or replace valve assembly
Service:
Compatible gases and liquids.
Wetted Materials:
Body: Acrylic plastic; O-ring: Buna-N (optional fluoroelastomer); Valve: Delrin®; Float: Stainless steel; Float stop: Polyolefin (range no. 141 Polyolefin and PVC); Float rod: 18-8 SST; Fittings: PVC (VFCRII Delrin®); ABS plastic.
Temperature Limit:
120°F (48°C).
Pressure Limit:
100 psig (6.9 bar).
Accuracy:
2% of FS.
Process Connection:

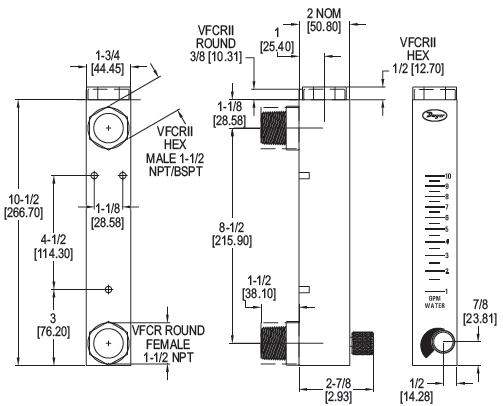

VFCR: 1" female NPT back connections; VFCRII: 1" male NPT back connections.
Scale Length:
5" (127 mm).
Mounting Orientation:
Mount in vertical position.
Weight:
25.6 oz (0.73 kg).
Agency Approvals:
Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
