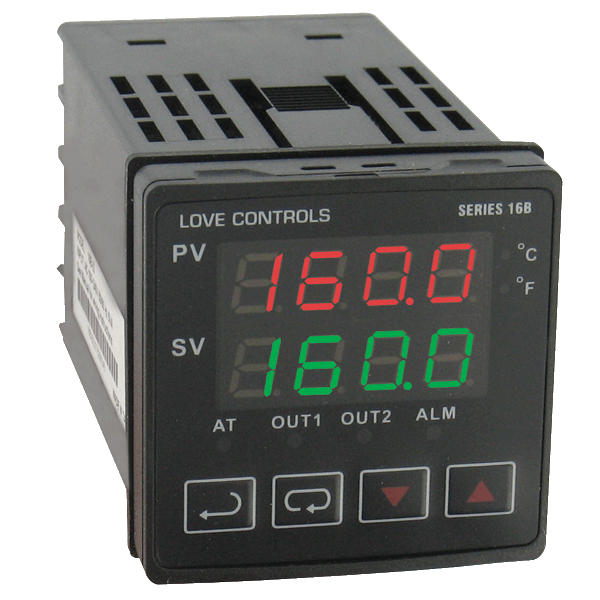

Monitor and control temperature or process applications with precision using the Series 16B controllers. The units offer two separate outputs for dual loop control in direct or reverse acting. Select relay, voltage, or current output combined with a second relay output.

The Series 16B provides dual LED displays for local indication of process value and setpoint value. Output status, engineering scale, auto tuning and alarm status is also indicated on the front panel.

Control methods include ON/OFF, PID, self-tune and manual tune. PID control is supported with 64 ramp/soak control actions. Two additional alarm outputs are standard on the Series 16B. The alarm outputs can be quickly configured by using the thirteen built-in alarm functions.

The controller easily communicates with other external devices such as PC's and PLC's for data search and system integration using the built-in RS-485 interface. Up to 247 communication addresses are available with transmission speeds of 2400 to 38,400 bps. The Series 16B also features universal input, selectable °F/°C, selectable resolution and security functions.

ModelDescription

16B-231/16 DIN temperature/process controller, voltage pulse output 1 and relay output 2.

16B-331/16 DIN temperature/process controller, relay outputs 1 and 2.

16B-531/16 DIN temperature/process controller, current output 1 and relay output 2.

16B-631/16 DIN temperature/process controller, linear voltage output 1 and relay output 2.

Inputs:Thermocouple, RTD, DC voltages or DC current.

Display:Two 4-digit, 7 segment .25" H (6.35 mm) LED's. PV: red; SV: green.

Accuracy:±0.25% span, ±1 least significant digit.

Supply Voltage:100 to 240 VAC, 50/60 Hz or 24 VDC (depending on model).

Power Consumption:

5 VA max.

Operating Temperature:

32 to 122°F (0 to 50°C).

Memory Backup:Nonvolatile memory.

Control Output Ratings:Relay: SPST, 5 A @ 250 VAC resistive; Voltage Pulse: 14 V, 10% to -20% (max 40 mA); Current: 4 to 20 mA.

Communication:RS-485 Modbus® A-5-11/RTU communication protocol.

Weight:4 oz (114 g).

Agency Approvals:CE, RoHS, cUL, UL.

Front Panel Rating:IP56.
