从360°水或空气范围查看流量

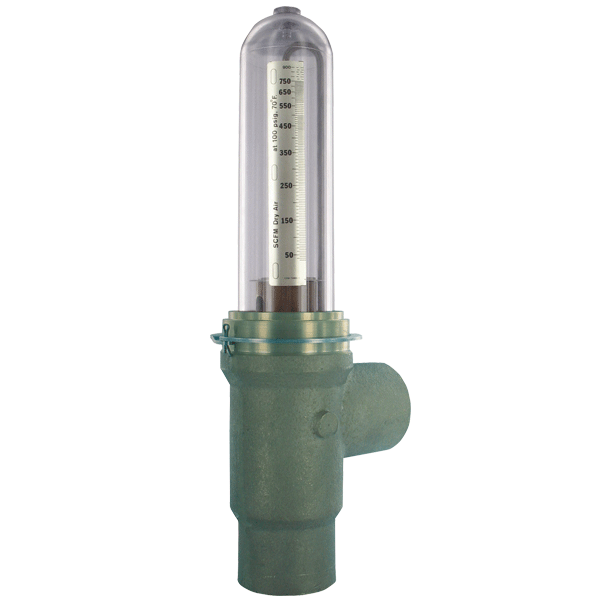

TVF Total View系列工业流量计价格经济、坚固、简单、准确。流量计的满量程精度为±2%，由T-316不锈钢制成。TVF系列流量计配有标准的3/4“和1-1/2”内螺纹NPT接头。
产品应用
水和机油流量监测冷却液管路压缩气体工业应用
特征
易于阅读，可360°旋转塑料观察管模型上的刻度
观察管由聚砜组成，以增加耐腐蚀性
易于拆卸，无需将仪表从管道上拆下，便于清洁
坚固的结构允许高压力和温度额定值，以延长使用寿命
用途：兼容气体或液体。
材料：阀体：不锈钢；O型环：丁腈橡胶；观察管：聚砜。
温度限值：见目录页上的“工作限值”表。
压力限值：见目录页上的“工作限值”表。
精度：±2%FS。
重复性：±0.25%指示流量。
工艺连接：3/4“和1-1/2”内螺纹NPT。3/4”NPT连接的刻度长度：3.2”（8 cm）；对于1-1/2英寸NPT连接，为5.2英寸（13厘米）。
重量：对于3/4英寸，为4磅（1.8千克），对于1-1/2英寸，为12磅（5.5千克）。
| EXAMPLE | TVF | S | 00 | Series TVFS-00 Stainless Steel Total View Industrial Flowmeter, range 0.025-0.545 GPM water, with 3/4" female NPT. |
| SERIES | TVF | Total View Industrial Flowmeter | ||
| MATERIAL | S | T-316 Stainless Steel | ||
|
RANGE & CONNECTION SIZE |
00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 |
0.025-0.545 GPM Water, 3/4" Female NPT 0.40-0.80 GPM Water, 3/4" Female NPT 0.06-1.20 GPM Water, 3/4" Female NPT 0.08-1.64 GPM Water, 3/4" Female NPT 0.10-2.60 GPM Water, 3/4" Female NPT 0.15-3.80 GPM Water, 3/4" Female NPT 0.20-5.40 GPM Water, 3/4" Female NPT 0.20-7.00 GPM Water, 3/4" Female NPT 0.20-10.0 GPM Water, 3/4" Female NPT 0.60-14.0 GPM Water, 3/4" Female NPT 0.50-23.0 GPM Water, 3/4" Female NPT 0.50-11.0 GPM Water, 1-1/2" Female NPT 0.70-15.0 GPM Water, 1-1/2" Female NPT 1.00-21.0 GPM Water, 1-1/2" Female NPT 0.50-35.0 GPM Water, 1-1/2" Female NPT 1.00-50.0 GPM Water, 1-1/2" Female NPT 2.00-70.0 GPM Water, 1-1/2" Female NPT 3.00-90.0 GPM Water, 1-1/2" Female NPT 4.00-120.0 GPM Water, 1-1/2" Female NPT 0.16-3.20 SCFM Air, 3/4" Female NPT 0.50-5.00 SCFM Air, 3/4" Female NPT 0.30-7.40 SCFM Air, 3/4" Female NPT 0.50-10.2 SCFM Air, 3/4" Female NPT 0.60-14.0 SCFM Air, 3/4" Female NPT 1.00-20.0 SCFM Air, 3/4" Female NPT 1.00-26.0 SCFM Air, 3/4" Female NPT 1.00-35.0 SCFM Air, 3/4" Female NPT 2.00-50.0 SCFM Air, 3/4" Female NPT 3.00-70.0 SCFM Air, 3/4" Female NPT 4.00-85.0 SCFM Air, 3/4" Female NPT 6.00-125.0 SCFM Air, 3/4" Female NPT 6.00-160.0 SCFM Air, 3/4" Female NPT 4.00-260.0 SCFM Air, 3/4" Female NPT 1.50-25.0 SCFM Air, 1-1/2" Female NPT 1.00-31.0 SCFM Air, 1-1/2" Female NPT 2.00-40.0 SCFM Air, 1-1/2" Female NPT 3.00-70.0 SCFM Air, 1-1/2" Female NPT 4.00-100.0 SCFM Air, 1-1/2" Female NPT 5.00-140.0 SCFM Air, 1-1/2" Female NPT 5.00-175.0 SCFM Air, 1-1/2" Female NPT 6.00-250.0 SCFM Air, 1-1/2" Female NPT 2.00-310.0 SCFM Air, 1-1/2" Female NPT 7.50-390.0 SCFM Air, 1-1/2" Female NPT 10.0-510.0 SCFM Air, 1-1/2" Female NPT 35.0-750.0 SCFM Air, 1-1/2" Female NPT 20.0-1000.0 SCFM Air, 1-1/2" Female NPT 0.1-2.2 LPM Water, 3/4" Female NPT 0.2-3.1 LPM Water, 3/4" Female NPT 0.3-6.7 LPM Water, 3/4" Female NPT 0.4-10.5 LPM Water, 3/4" Female NPT 0.6-16.5 LPM Water, 3/4" Female NPT 0.75-23.0 LPM Water, 3/4" Female NPT 0.75-26.5 LPM Water, 3/4" Female NPT 0.75-44.0 LPM Water, 3/4" Female NPT 2.0-56.0 LPM Water, 3/4" Female NPT 2.0-87.0 LPM Water, 3/4" Female NPT 1.0-47.0 LPM Water, 1-1/2" Female NPT 2.5-64.0 LPM Water, 1-1/2" Female NPT 3.7-79.0 LPM Water, 1-1/2" Female NPT 2.0-150.0 LPM Water, 1-1/2" Female NPT 8.0-220.0 LPM Water, 1-1/2" Female NPT 7.0-265.0 LPM Water, 1-1/2" Female NPT 15.0-454.0 LPM Water, 1-1/2" Female NPT 5.0-96.0 SLPM Air, 3/4" Female NPT 20.0-520.0 SLPM Air, 3/4" Female NPT 80.0-2500 SLPM Air, 3/4" Female NPT |
