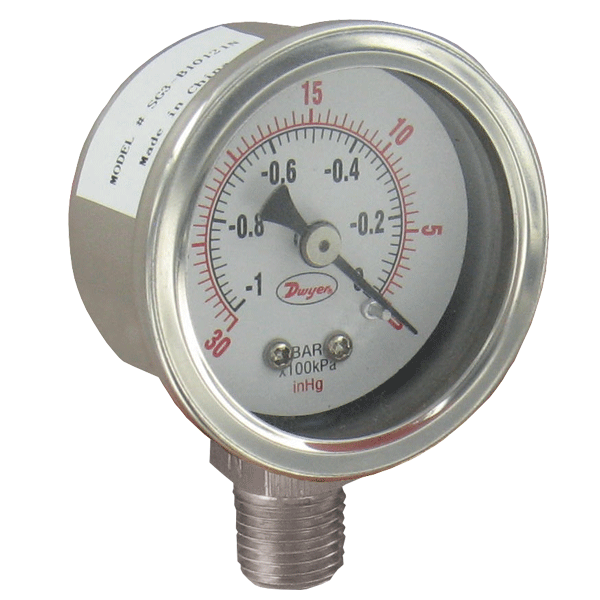

SG3系列1.5“工业压力表
2.5%FS精度，316不锈钢湿润部件，双PSI/Bar x100 kPa刻度
SG3系列工业压力表具有双psi和bar（x100 kPa）刻度，满刻度精度为±2.5%。SG3系列压力表采用304不锈钢外壳和316不锈钢润湿部件设计，具有良好的化学兼容性。这些压力计涵盖了从全真空到300磅/平方英寸的范围。装置可承受高达140°F（60°C）的环境温度。底部或背面1/8“NPT连接选项可用。
附件下提供校准选项。
产品应用
气力输送管路中的真空压缩空气头中的正压力腐蚀性环境
特征
不锈钢外壳，抗环境腐蚀，在恶劣环境下使用寿命更长
高精度仪表，适用于需要更精确测量且存在振动问题的价值敏感应用
背面或底部安装，尺寸紧凑，安装时有尺寸限制
Service:Compatible gases and liquids.
Wetted Materials:316 L SS tube, 316 SS connector.
Housing:304 SS.
Lens:Polycarbonate.
Accuracy:2.5% FS.
Pressure Limit:FS range.
Temperature Limits:-4 to 140°F (-20 to 60°C).
Size:1.5" (40 mm).
Process Connections:1/8" male NPT.
Weight:2.4 oz (70 g) bottom, 2.5 oz (72 g) back.
| Model | Description |
|---|---|
| SG3-B10121N | 1.5" SS gage, 1/8" npt bottom connection, range 30" Hg |
| SG3-B10321N | 1.5" SS gage, 1/8" npt bottom connection, range 30 psi |
| SG3-B10341N | 1.5" SS gage, 1/8" npt back connection, range 30 psi |
| SG3-B10421N | 1.5" SS gage, 1/8" npt bottom connection, range 60 psi |
| SG3-B10441N | 1.5" SS gage, 1/8" npt back connection, range 60 psi |
| SG3-B10521N | 1.5" SS gage, 1/8" npt bottom connection, range 100 psi |
| SG3-B10541N | 1.5" SS gage, 1/8" npt back connection, range 100 psi |
| SG3-B10621N | 1.5" SS gage, 1/8" npt bottom connection, range 160 psi |
| SG3-B10641N | 1.5" SS gage, 1/8" npt back connection, range 160 psi |
| SG3-B10721N | 1.5" SS gage, 1/8" npt bottom connection, range 200 psi |
| SG3-B10741N | 1.5" SS gage, 1/8" npt back connection, range 200 psi |
| SG3-B11021N | 1.5" SS gage, 1/8" npt bottom connection, range 300 psi |
