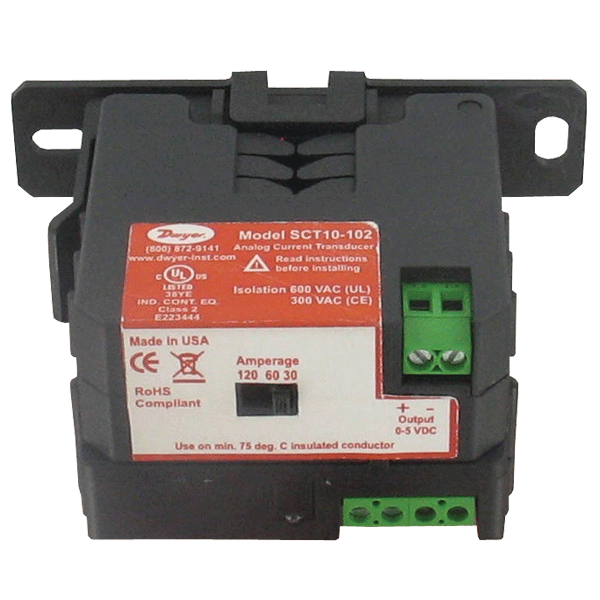

SCT系列电流互感器
可选辅助、继电器输出、分芯
SCT系列电流互感器连续测量泵、风扇、锅炉、太阳能电池板和制冷机的电流消耗，用于能源监测。电流或电压输出可以使用滑块开关在三个出厂设置范围之间进行缩放。分芯配置允许电流互感器安装在新的和现有的装置上。按扣式安装支架允许快速安装替换变压器。一个可选的10A指令继电器可以卡在电流开关上，这样就不需要安装额外的继电器。
Amperage Range:30/60/120 A or 20/100/150 A (depending on model).
Continuous Operating Current:120 A or 150 A (depending on model).
Output:
4 to 20 mA, 0 to 5 VDC, 0 to 10 VDC (depending on model). Optional relay NO SPST; 10 A @ 260 VAC, 5 A @ 30 VDC.
Power Requirements:Self-powered or 24 VDC (depending on model).
Accuracy:±2% from 10 to 100% of selected range.
Temperature Limits:5 to 140°F (-15 to 60°C).
Humidity Limits:0 to 95% non-condensing.
Response Time:2 s.
Isolation Voltage:600 VAC RMS.
Frequency:50/60 Hz.
Enclosure Rating:UL, V-O flammability rated, type 66 nylon.
Agency Approvals:CE, RoHS, cUL, UL.
| Model | Description |
|---|---|
| SCT10-100 | Current transducer, split core, 4-20 mA output, range 30/60/120A |
| SCT10-102 | Current transducer, split core, 0-5 VDC output, range 30/60/120A |
| SCT20-103 | Current transducer, split core, 0-10 VDC output, range 20/100/150A |
