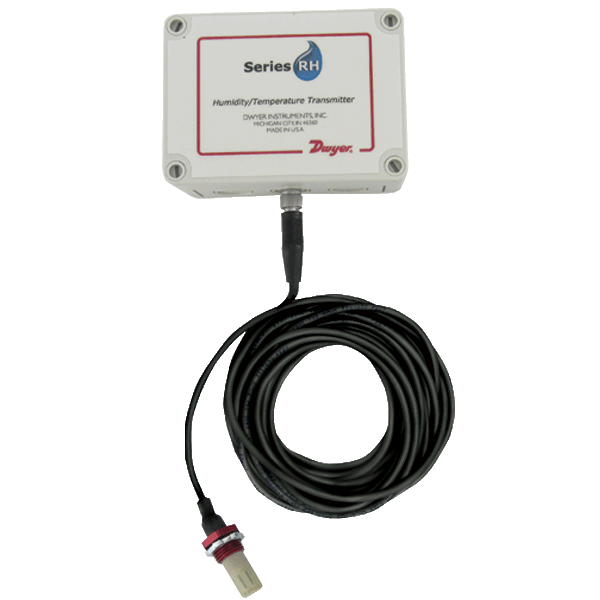

RH-R系列湿度/温度变送器
远程安装，现场可更换传感器过滤器，最多16'电缆
系列RH-R湿度变送器是空间有限的应用场合的理想变送器。紧凑型传感器由可拆卸过滤器保护。它可以安装到16英尺以外的防风雨基地。该系列RH-R是理想的环境室，橡胶气囊爆裂检测和空气处理器的应用。
产品应用
过程系统监控环境室空气省煤器
Service:Dry clean air.
Relative Humidity Range:0 to 100% RH.
Temperature Range:-40 to 140°F (-40 to 60°C).
Accuracy:±2% @ 10 to 90%.
Temperature Limits:-40 to 140°F (-40 to 60°C).
Storage Temperature:-40 to 176°F (-40 to 80°C).
Compensated Temperature Range:-4 to 140°F (-20 to 60°C).
Power Requirements:10 to 35 VDC.
Output Signal:4 to 20 mA loop powered.
Response Time:Less than 15 s.
Electrical Connections:Terminal block.
Conduit Connection:1/2" NPT.
Process Connection:1/2 NPSM.
Drift:Less than 1%/year.
RH Sensor:Capacitance polymer.
| Model | Description |
|---|---|
| RHU-R008 | Humidity Transmitter, 8' cable, current output. |
| RHU-R016 | Humidity Transmitter, 16' cable, current output. |
