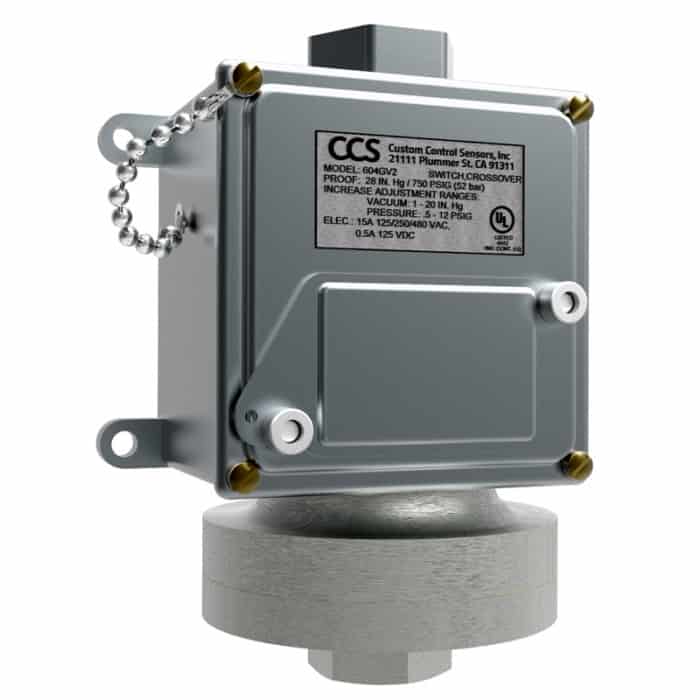

604G系列是一种通用的全铝表压开关。它是由一个完整的接线盒和开关设计和易于设置点调整。它也很容易安装到舱壁和UL认证与NEMA 4和IP65等级。它具有高振动和冲击阻力利用双卡扣 碟簧技术。应用包括非危险环境，如：
•发电
•轨道车
•流体管理
•制造工艺
•公用设施、水处理和废物
•化学精炼和加工
•重型车辆
•安全系统

Additional information
Environmental Approvals
IP65, NEMA 4, NEMA 13, NACE, RoHS

Industry
Industrial

Instrumentation
Pressure Switch

Environment
Non-Hazardous

Certification Agency Approvals
UL, CE, CRN, CCC

Operating Temperature Range
-40° to 186 °F

Process Connection Fitting Size
Female 1/4" NPT

Process Connection Material
Aluminum

Housing Enclosure
Aluminum

Electrical Connection
Female 3/4" NPT

Electrical Switch Type
SPDT

Voltage Electrical Rating VAC
0 to 250 VAC, 251 to 480 VAC

Amperes Electrical Rating
0.2 to 15 A

Fixed or Adjustable Set Point
Adjustable

Presetting
Factory Set, Not Factory Set

Tagging
Mylar, Stainless Steel

Accessories
Manifold

Increasing Pressure Range
1 to 16 PSIG, 8 to 75 PSIG, 20 to 150 PSIG, 50 to 375 PSIG, 330 to 1000 PSIG

Decreasing Pressure Range
0.3 to 15.3 PSIG, 22 to 347 PSIG, 265 to 935 PSIG, 3 to 70 PSIG, 8 to 138 PSIG

Pressure Type
Gage

Media
Oil Based, Non-Oil Based

Increasing Pressure Ranges
0 – 1.15 PSI, 1.16 – 2.99 PSI, 3 – 180 PSI, 180.01 – 3400 PSI

Decreasing Pressure Ranges
0 – 1.15 PSI, 1.16 – 173 PSI, 173.01 – 3180 PSI

Maximum System Pressure
500, 3000

Maximum Proof Pressure
750, 5000

Process Connection Seal
O-Ring Sealed Diaphragm

Diaphragm
Polyimide

O-ring
Buna N
